    ATC70 Pullstarter

    The 1981-1985 Honda ATC 70's pull starters have now been added to the discontinued list of Honda parts. This forced me to rebuild a few of them and I'd like to share a bit of information that I have found through the process.... I saw a NOS one go for $250 on ebay.

    tmas



    Here is the one I reconditioned.Internal parts are still available







    Discontinued part.







    Brand new one.







    Comparison.




    tmas




  2. #2
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    This is what I started with. More information to come..stay tuned.

    tmas







    Rebuilt a couple of them.

    tmas




    tmas




  3. #3
    Senior Member
    This user has no status.

    Fikse7's Avatar

    Join Date
    Jan 2006
    Location
    Oklahoma
    Posts
    208

    Re: ATC70 Pullstarter

    Can you still get the rubber handle?

  4. #4
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    I got the last one from Honda Canada...not sure about the US supply.

    tmas

    tmas




  5. #5
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    Quote Originally Posted by Fikse7
    Can you still get the rubber handle?
    Dratv has them for like $12.

    tmas

    tmas




  6. #6
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    The pulley is still available....$33... and is one of the culprits of the pull starter not working properly.

    tmas







    Pulley shots.




    tmas




  7. #7
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    The pulley contains the spring which is not that hard to wind.

    tmas




    tmas




  8. #8
    Z Admin Icon
    Z is offline
    Administrator
    is nowhere to be found.

    Z's Avatar
    Supporting Member

    Join Date
    Sep 2003
    Location
    KANSAS
    Posts
    9,526

    Re: ATC70 Pullstarter

    Todd,



    Please do a writeup with all the detailed pictures. Very valuable resource.

  9. #9
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    The pull starter dogs fit into the cage mounted on the flywheel.The pull starter has a separate mounting cover.

    tmas







    The dogs come out and mesh into the cage as the pull starter is pulled.







    Dogs in.




    tmas




  10. #10
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    Quote Originally Posted by Z
    Todd,



    Please do a writeup with all the detailed pictures. Very valuable resource.
    Will do Z. I have compiled a few pics.

    tmas

    tmas




  11. #11
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    Here is a pic of a new starter dog. There are 3 of them ......$8 each.

    tmas

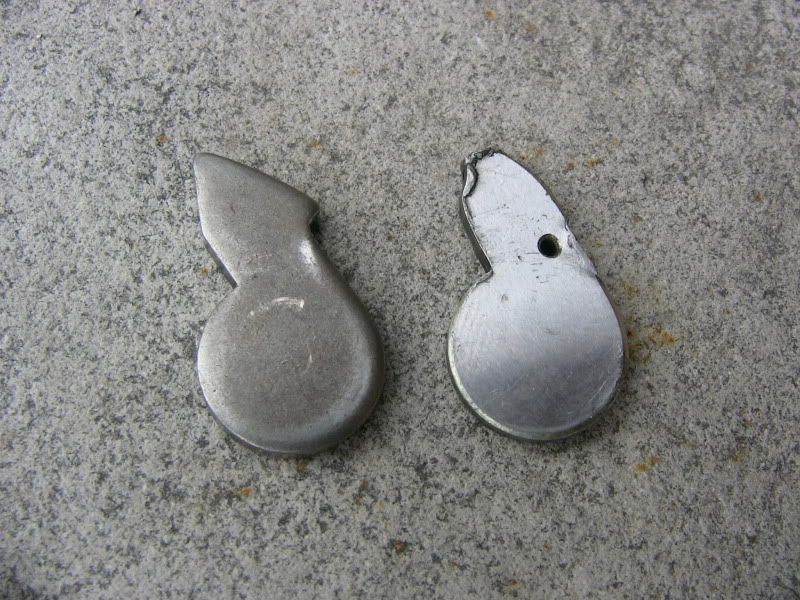

    Here is a worn one beside the new one. Notice the hole in the original one....

    tmas




    tmas




  12. #12
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    Here are some pics of some pulley problems I have encountered.... do you see the cracks in the pulley and wear?The pulley is made of steel.

    tmas


















    tmas




  13. #13
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

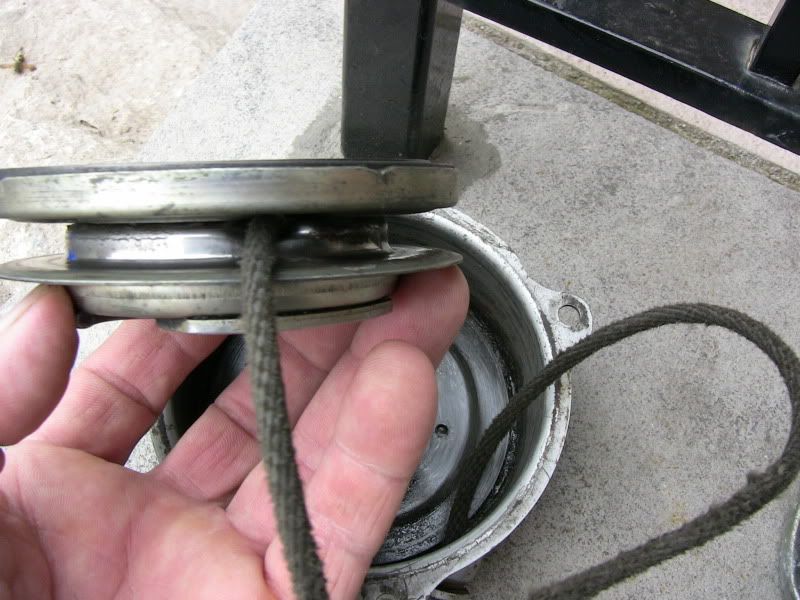

    The rope ties into the pulley and the spring does not have to be removed to change the rope if your rope breaks.

    tmas







    The rope knot is tied into this bracket.

    tmas




    tmas




  14. #14
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

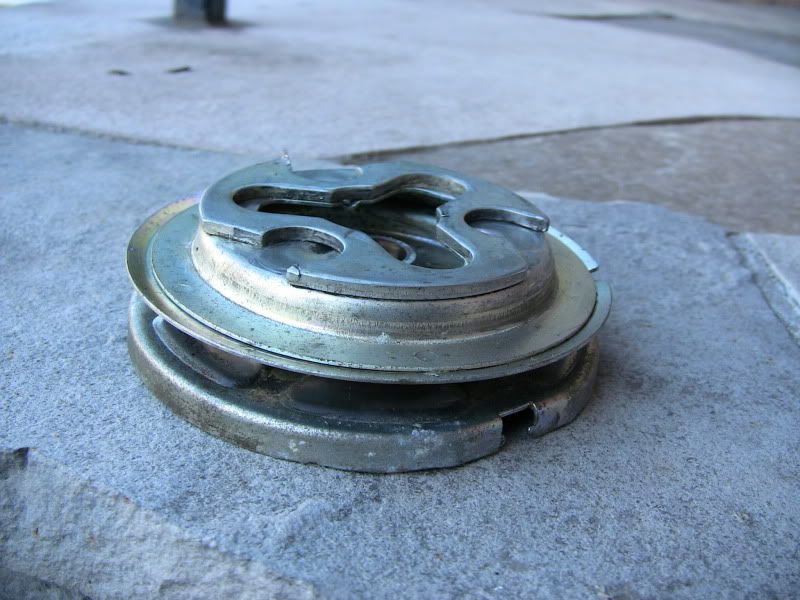

    The hole in the original dog is used for this clip. The new dogs do not have the hole so the clip can't be reused.

    tmas









    Looks like some gang symbol...

    tmas

    tmas




  15. #15
    Super Moderator
    is .........?

    tmas's Avatar
    Supporting Member

    Join Date
    Apr 2005
    Location
    ......otnoroT......
    Posts
    8,545

    Re: ATC70 Pullstarter

    Here is a pic of most of the pull starter parts.

    tmas







    This is what the spring winds into.

    tmas








    tmas
