z50 rear wheel on crf50?

This is a discussion on z50 rear wheel on crf50? within the Stunt Minis forums, part of the General Talk category; dude that gonna be my next mods! z 50 chrome wheels with street tires! looks like a little tank! do they sell white walls for ...

Page 2 of 4 FirstFirst 1234 LastLast
Results 16 to 30 of 46
Like Tree3Likes

Thread: z50 rear wheel on crf50?

  1. #16
    Senior Member
    This user has no status.

    blackhatch's Avatar

    Join Date
    Jan 2007
    Location
    Warren Ohio
    Posts
    277

    Re: z50 rear wheel on crf50?

    dude that gonna be my next mods! z 50 chrome wheels with street tires! looks like a little tank! do they sell white walls for the zees?



    also would i need crf70 front end or a z50 front end? im thinking i would like the 70 front more but i dont wanna make the bike look huge.

  2. #17
    Junior Member
    is scrubbin'

    superhumanyouth's Avatar

    Join Date
    Jan 2012
    Location
    Sacramento
    Posts
    7
    This is a project I am currently working on. The wheels work fine as long as you have the spacers as stated previously. Hope you all enjoy.












  3. #18
    Senior Member
    is Rocking a 88cc DOHC on 8's

    eichkay's Avatar

    Join Date
    Jul 2005
    Location
    Perth, Australia
    Posts
    887
    at are you guys doing on the brake side, ive got some monkey wheels from a 2009 and brake hub is a far way in from the knob on the swingarm.. i did a quick measure of a Z50R wheel and it was exactly the same width.

    would be nice to see more detailed photos either side of the hub.
    20plus

    Fifty Riders

  4. Remove Advertisements
    PlanetMinis.com
    Advertisements


  5. #19
    Senior Member
    is Rocking a 88cc DOHC on 8's

    eichkay's Avatar

    Join Date
    Jul 2005
    Location
    Perth, Australia
    Posts
    887
    Never mind guys... i did some more measuring and the Z50J rims go straight on as well, the distance between the brake hub and the sproket are the same on CRF rim vs Z50J ... I thought i was going to have to make spacers up either side but its just the sprocket side needs the spacer.
    20plus

    Fifty Riders

  6. #20
    Senior Member
    This user has no status.

    InfiniteReality's Avatar

    Join Date
    Oct 2009
    Location
    Lake Charles, LA
    Posts
    160
    Randomly came across this in a google search and yeah I know I'm reviving it...

    After making a ride with the NOLA Ruckus crew sunday and seeing all the fat tires, I'm itching to do one on my street legal CRF50. It appears from reading, I only need a Z50 wheel, hub, brake and a spacer... Right? Or does a CRF50 brake drum happen to fit on it? I'm also considering getting some knockoff wheels, hub and brake so I can get new stuff.

    Any help, info or more pictures is appreciated!

  7. #21
    Senior Member
    This user has no status.

    InfiniteReality's Avatar

    Join Date
    Oct 2009
    Location
    Lake Charles, LA
    Posts
    160
    Anyone know what size tire you can fit on a Z50 wheel inside a CRF50 swingarm? 3.5" I'm confident will fit, but curious if I could fit a 4.00" inside the arm?

  8. #22
    Super Moderator
    is grateful again...

    dirtbkr188's Avatar
    Supporting Member

    Join Date
    May 2004
    Location
    New Jersey
    Posts
    8,239
    A 3.50 x 8 tire does fit, the 50 and 70 swingarm is the same width, they both use the same rear axle. The bike in THIS POST has 3.50 tires on it, and an XR70 swingarm.
    You might want to keep tabs on that same thread, the Original Poster is planning on using 4.00 x 8s on his bike.
    Quite possibly, the chain may hit the 4.00 sidewall
    - dirtbkr188 -



  9. #23
    Senior Member
    This user has no status.

    InfiniteReality's Avatar

    Join Date
    Oct 2009
    Location
    Lake Charles, LA
    Posts
    160
    Cool, I appreciate the info man! I actually ordered a set of 4.00 x 8 yesterday with hopes I can either figure a way to fit it on the stock 50 arm or if I need to I can find a used 70 arm. I should have waited, but got antsy.

    EDIT: Well I guess a 70 arm isn't much different, if at all from a 50 arm? I didn't realize the guy in the other thread had an aftermarket arm. I guess I need to just wait till the 4.00 comes in and I can see if it'll fit or how I can fit it with a stock arm. Assuming it's going to be right at 1/4" wider on each side of the 4.00 tire, how close is your 3.50 tire to the chain now? thanks again for the info!
    Last edited by InfiniteReality; 07-25-2012 at 07:33 AM.

  10. #24
    Senior Member
    is time for a new build

    bigair49's Avatar

    Join Date
    Nov 2009
    Location
    Ont. Canada
    Posts
    247

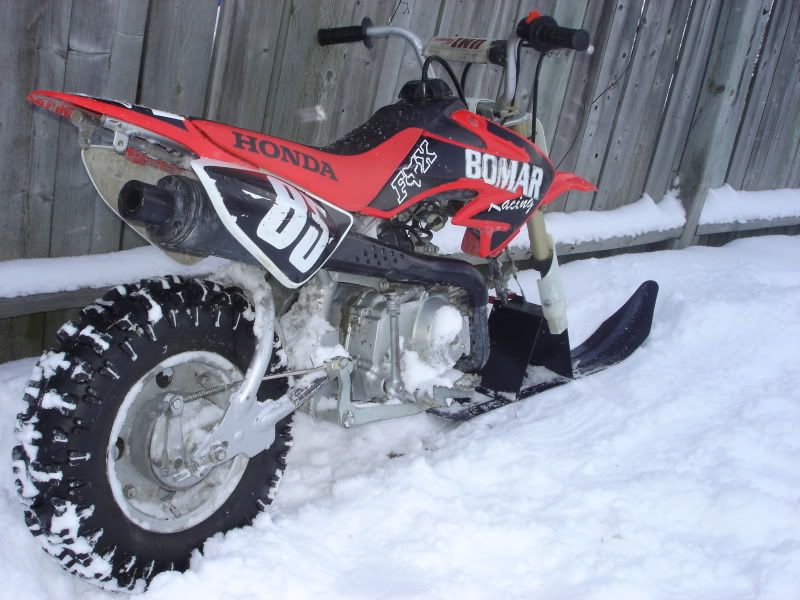

    Ya man you can do it just fine here is a pic of my winter set up

  11. #25
    Senior Member
    This user has no status.

    InfiniteReality's Avatar

    Join Date
    Oct 2009
    Location
    Lake Charles, LA
    Posts
    160
    Man, that's sick! Tell me that's a 4.00x8 tire?!

  12. #26
    Senior Member
    is time for a new build

    bigair49's Avatar

    Join Date
    Nov 2009
    Location
    Ont. Canada
    Posts
    247
    Ya man they are awesome in the snow,I pulled the wheel as far back as i could to gain some clearance but they do get plugged up ion the mud
    Last edited by bigair49; 07-25-2012 at 09:25 AM.

  13. #27
    Senior Member
    This user has no status.

    InfiniteReality's Avatar

    Join Date
    Oct 2009
    Location
    Lake Charles, LA
    Posts
    160
    That's awesome to hear! Sounds like my 4.00 street tires should fit then. Thanks alot for the pic and confirmation they should work!

  14. #28
    Member
    This user has no status.

    adrenalinjunky's Avatar

    Join Date
    Jun 2012
    Posts
    54
    Im not a fan of the snow but that makes me want it!!! Lol

  15. #29
    Senior Member
    This user has no status.

    zwieblekopf's Avatar

    Join Date
    Mar 2009
    Location
    Mesa, AZ
    Posts
    1,917
    crf50 brake works, so just wheel, hub and either a bigger spacer, extra spacer, or a few 12mm washers to act as a spacer.

  16. #30
    Senior Member
    is Rocking a 88cc DOHC on 8's

    eichkay's Avatar

    Join Date
    Jul 2005
    Location
    Perth, Australia
    Posts
    887
    Quote Originally Posted by InfiniteReality View Post
    Cool, I appreciate the info man! I actually ordered a set of 4.00 x 8 yesterday with hopes I can either figure a way to fit it on the stock 50 arm or if I need to I can find a used 70 arm. I should have waited, but got antsy.

    EDIT: Well I guess a 70 arm isn't much different, if at all from a 50 arm? I didn't realize the guy in the other thread had an aftermarket arm. I guess I need to just wait till the 4.00 comes in and I can see if it'll fit or how I can fit it with a stock arm. Assuming it's going to be right at 1/4" wider on each side of the 4.00 tire, how close is your 3.50 tire to the chain now? thanks again for the info!
    A 4.0 wide tire should clear fine ive got 3.5 rims and 120mm wide tires on my crf50 and chain clearance is good..
    20plus

    Fifty Riders
