  1. #31
    Senior Member
    is Ride this

    geezer's Avatar

    Join Date
    Dec 2009
    Location
    Blackwood N.J.
    Posts
    2,346
    Quote Originally Posted by sous View Post
    Lets start a thread and see how many want a 54mm crank
    Ill take 5
    TB has a 51mm crank,and is really good quality. So 51 X54 is a 117cc
    Ride on the edge

  2. #32
    Member
    is KingoftheKong

    threeshadesofblue's Avatar

    Join Date
    May 2011
    Location
    home
    Posts
    75
    Quote Originally Posted by geezer View Post
    TBolt dose not set the price. The new roller head makes way more...blablabla
    Amazing how in certain Hobbies people get pulled over the table over and over and in the end defend that too....(MX, pitbike, RC...you name it)
    Good luck with the sales

  3. #33
    Senior Member
    This user has no status.

    sous's Avatar

    Join Date
    Jun 2009
    Location
    beirtut, lebanon, + (NY)(brooklyn)
    Posts
    171
    Quote Originally Posted by geezer
    TB has a 51mm crank,and is really good quality. So 51 X54 is a 117cc
    Yeah i have it on my bike also my friends bikes
    For quality sure its TB some friend with other famous brand having lots of problem with piston , valve ect,,,

  4. Remove Advertisements
    PlanetMinis.com
    Advertisements


  5. #34
    Senior Member
    is I only do 2 things , Ride Dirt
    Bikes and Wanting to Ride Dirt
    bikes !!

    T Bolt USA's Avatar

    Join Date
    Jan 2005
    Location
    Pennsylvania
    Posts
    10,277
    Quote Originally Posted by threeshadesofblue View Post
    Amazing how in certain Hobbies people get pulled over the table over and over and in the end defend that too....(MX, pitbike, RC...you name it)
    Good luck with the sales
    Absolutely no need to defend anything
    this is a top quality product with excellent performance And its 1/2 the price or Takegawa , In the USA , With full part support at a fair price
    Ill do a few side by side comparisons soon so you can see
    Im sure you will see great reviews soon on this Honda V2 head , Just like the TB V2 head has Dominated the KLX market
    Our Test units flat out Rip
    T Bolt USA - Let's go riding!

    All the top Pit Bikes, Engines and Parts for Pit bikes & Minis! Let us know if we can help!

    Hidden Content - Hidden Content - Hidden Content - Hidden Content - (704) T-BOLT-US - Skype: TBoltUSA

  6. #35
    Senior Member
    is Ride this

    geezer's Avatar

    Join Date
    Dec 2009
    Location
    Blackwood N.J.
    Posts
    2,346
    Quote Originally Posted by threeshadesofblue View Post
    Amazing how in certain Hobbies people get pulled over the table over and over and in the end defend that too....(MX, pitbike, RC...you name it)
    Good luck with the sales
    You want to start trouble here dont you. You asked the question, I gave the answer. Now its a problem?I happen to work for Vince thats why I know, and gave the answer. I can send you a crying towel if you want.
    Ride on the edge

  7. #36
    Senior Member
    This user has no status.

    ugm582's Avatar

    Join Date
    May 2006
    Posts
    111
    so will this head work on a gpx 124 if used with the tb piston? Also can we expect to see the horsepower gaines wo got from the klx v2?

  8. #37
    Senior Member
    is I only do 2 things , Ride Dirt
    Bikes and Wanting to Ride Dirt
    bikes !!

    T Bolt USA's Avatar

    Join Date
    Jan 2005
    Location
    Pennsylvania
    Posts
    10,277
    Quote Originally Posted by ugm582 View Post
    so will this head work on a gpx 124 if used with the tb piston? Also can we expect to see the horsepower gaines wo got from the klx v2?
    This is the exact case scenario , we would only have a 54mm piston (131cc) and 57mm Big Bore Kit 146cc
    T Bolt USA - Let's go riding!

    All the top Pit Bikes, Engines and Parts for Pit bikes & Minis! Let us know if we can help!

    Hidden Content - Hidden Content - Hidden Content - Hidden Content - (704) T-BOLT-US - Skype: TBoltUSA

  9. #38
    Senior Member
    This user has no status.

    sous's Avatar

    Join Date
    Jun 2009
    Location
    beirtut, lebanon, + (NY)(brooklyn)
    Posts
    171
    What is the max Cc Can go With honda original. Studs v2 head ? Id like to go 51x 57 or 56 if its possibly

  10. #39
    Senior Member
    is Ride this

    geezer's Avatar

    Join Date
    Dec 2009
    Location
    Blackwood N.J.
    Posts
    2,346
    Quote Originally Posted by sous View Post
    What is the max Cc Can go With honda original. Studs v2 head ? Id like to go 51x 57 or 56 if its possibly
    That is possible but you would need custom offset case and cylinder boring. Basicly you would be looking at a custom race motor. Its much cheeper to do it on a China based Lifan type "bigger"stud pattern. It can be done but is really not as cost effective. The more cost effective way to do it would to buy a 150 daytona type 150 and put the TB top end on it. 57 bore x 60 stroke. I did a pitster rs 124 build 57 bore 54 stroke but it has the larger stud pattern. its in the china section. its now a 138
    Ride on the edge

  11. #40
    Senior Member
    This user has no status.

    taz69's Avatar

    Join Date
    Nov 2005
    Posts
    1,808
    Yea I wana know how that RS runs.. It looks to be the ticket if you wana keep the engine as short as a Honda (69mm) cylinder and light as well. It also has a clutch on the input shaft and has a 4 speed. I think doing it including getting the engine new would be less to upgrade than a Honda engine to over 124cc.. Just wait im sure TB will come out with a Honda 54mm piston and get a 54mm crank.. A Honda 124cc 54X54 with this head will rock.. Geezer can you run Takegawa +R cams in the Honda version of the TB v2? And I also know that TB sets the price at which ALL vendors must sell there stuff so Vince isnt controlling that..

  12. #41
    Senior Member
    is Ride this

    geezer's Avatar

    Join Date
    Dec 2009
    Location
    Blackwood N.J.
    Posts
    2,346
    Quote Originally Posted by taz69 View Post
    Yea I wana know how that RS runs.. It looks to be the ticket if you wana keep the engine as short as a Honda (69mm) cylinder and light as well. It also has a clutch on the input shaft and has a 4 speed. I think doing it including getting the engine new would be less to upgrade than a Honda engine to over 124cc.. Just wait im sure TB will come out with a Honda 54mm piston and get a 54mm crank.. A Honda 124cc 54X54 with this head will rock.. Geezer can you run Takegawa +R cams in the Honda version of the TB v2? And I also know that TB sets the price at which ALL vendors must sell there stuff so Vince isnt controlling that..
    Yes the head uses the same cam as the Honda type +R taky. so taky decomp cams will work with it and is a drop in. I belive the TB head has the 20 grind.I dont have a bike to try it in rite now. This engine has a jap made crank in it stock. I like the shorter rod, as a short rod motor always revs quicker and likes big ports. Its should be a real runner.
    Last edited by geezer; 08-28-2012 at 07:33 PM.
    Ride on the edge

  13. #42
    Senior Member
    This user has no status.

    sous's Avatar

    Join Date
    Jun 2009
    Location
    beirtut, lebanon, + (NY)(brooklyn)
    Posts
    171
    Great if the cam will work so the one include in the v2 honda kit if we want to compare it to taky cam which size 25D ?

  14. #43
    Senior Member
    This user has no status.

    taz69's Avatar

    Join Date
    Nov 2005
    Posts
    1,808
    Quote Originally Posted by sous View Post
    Great if the cam will work so the one include in the v2 honda kit if we want to compare it to taky cam which size 25D ?
    No he said it is more like a 20D..

  15. #44
    Senior Member
    is looking like this

    dextas's Avatar

    Join Date
    Aug 2012
    Location
    tasmania
    Posts
    116
    hi all ,,new member here , from south tassie australia ..

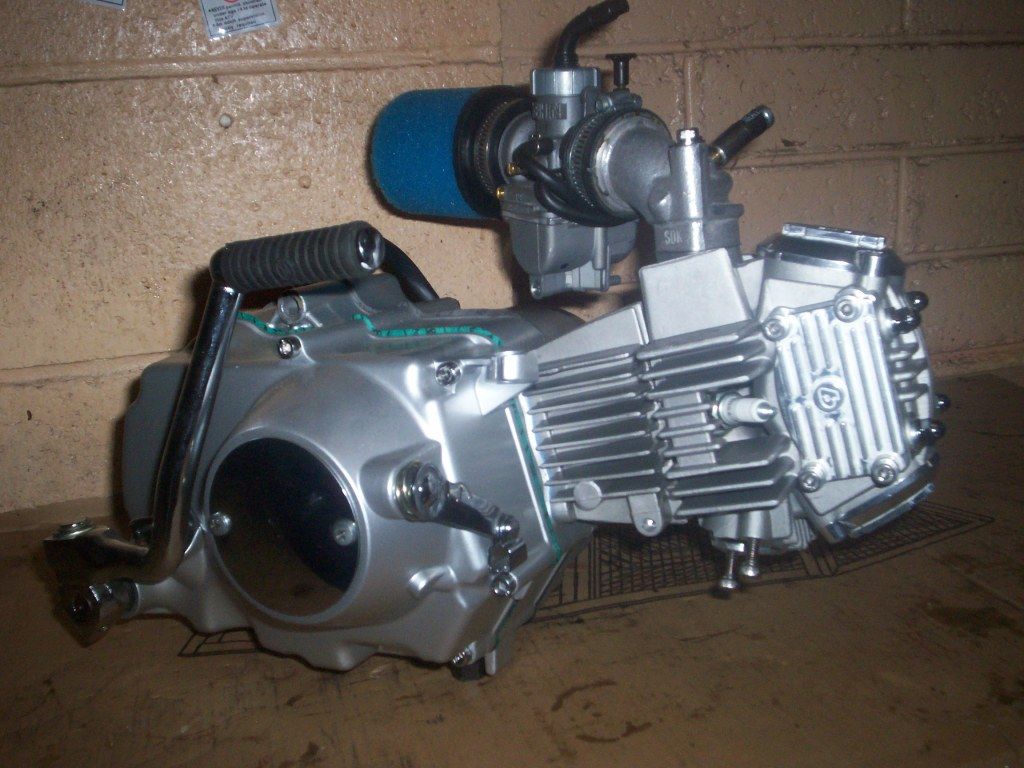

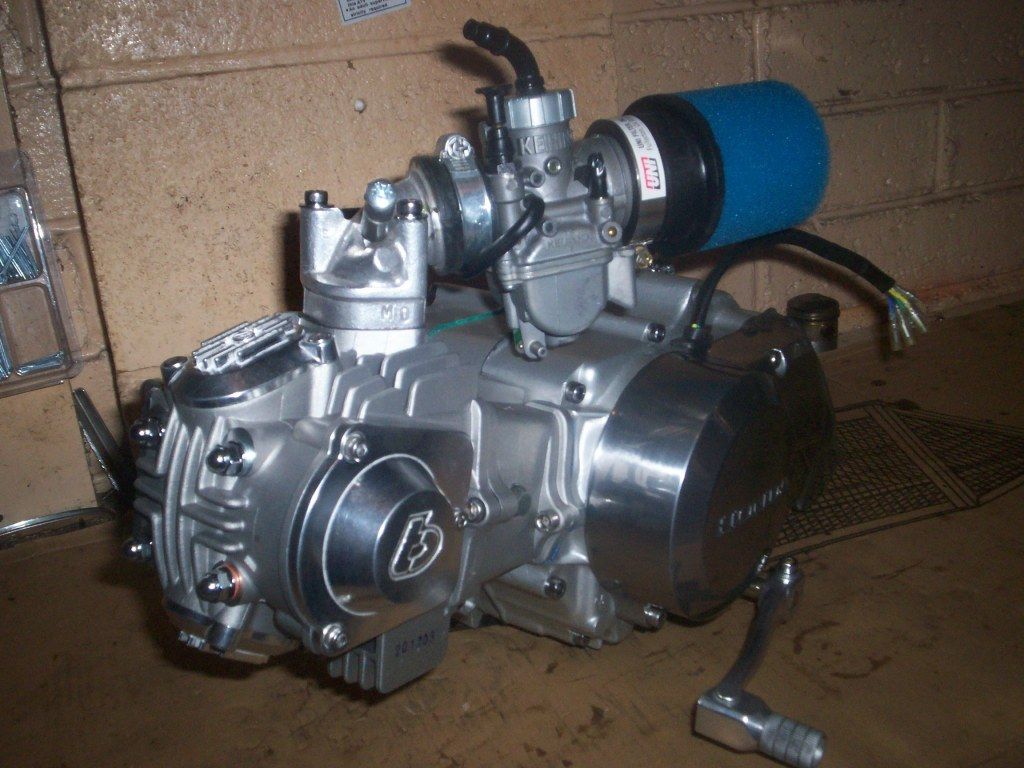

    i got one of these kits a few weeks ago , and bolted it to a j1 block
    motors stats are ,,
    the v2 roller rocker head ,
    88 barrel with the stroker crank to take it to 108 cc
    pe24 carb ,," sitting on an asia concepts manifold at the moment ,, tbw0433 on the way .
    ahp 4 speed conversion
    manual tb clutch conversion
    tb billet clutch basket
    12v cdi kit



    only hassle i had was the thin " black " head gasket ..
    on reaching tdc i felt a resistance and then could see the cam cog " click over " so to speak ,,
    swapped back to a " stock " 88 composite gasket ,, and things are back to normal ,, any ideas ? .

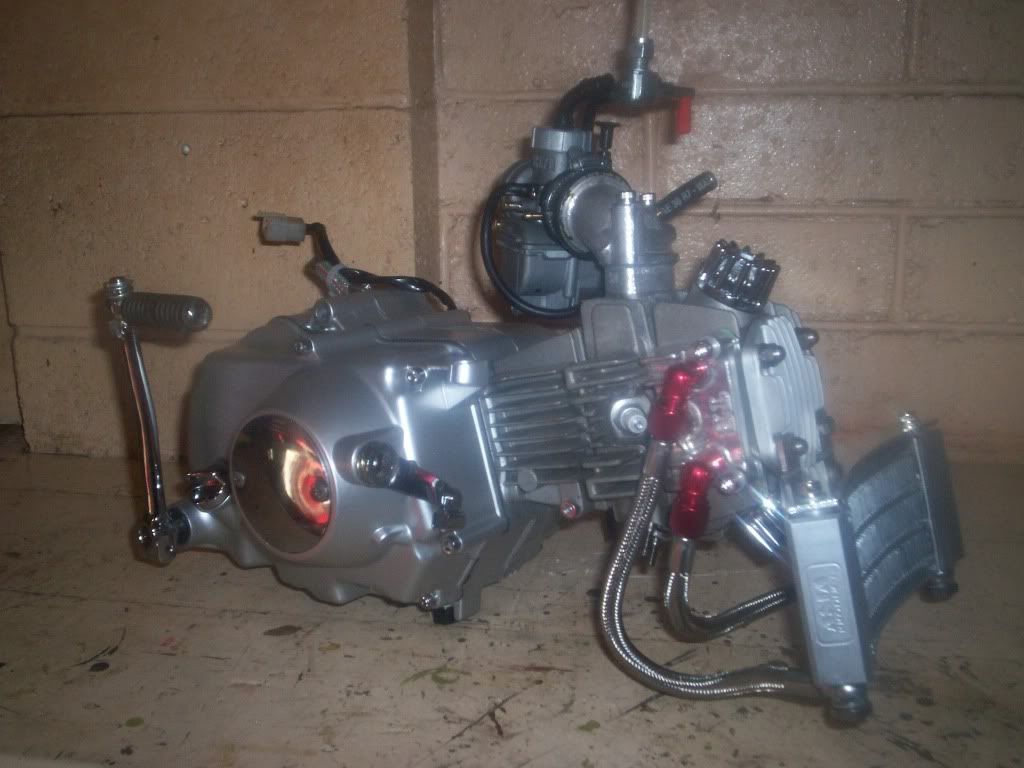

    also , if the head is a take " copy " of the super + head ,, will the oil cooler bypass plate bolt on ? ,,, as i want to use this cooler ,,
    Last edited by dextas; 08-29-2012 at 09:11 PM.

  16. #45
    Senior Member
    is I only do 2 things , Ride Dirt
    Bikes and Wanting to Ride Dirt
    bikes !!

    T Bolt USA's Avatar

    Join Date
    Jan 2005
    Location
    Pennsylvania
    Posts
    10,277
    Oil cooler Plates will be out Soon too
    thanks for posting
    T Bolt USA - Let's go riding!

    All the top Pit Bikes, Engines and Parts for Pit bikes & Minis! Let us know if we can help!

    Hidden Content - Hidden Content - Hidden Content - Hidden Content - (704) T-BOLT-US - Skype: TBoltUSA
